The existing twin box culvert is being extended by adding the headwall and retaining wing walls at 45 degree to accommodate addition of third truck on north side. Design Load Cooper E-90

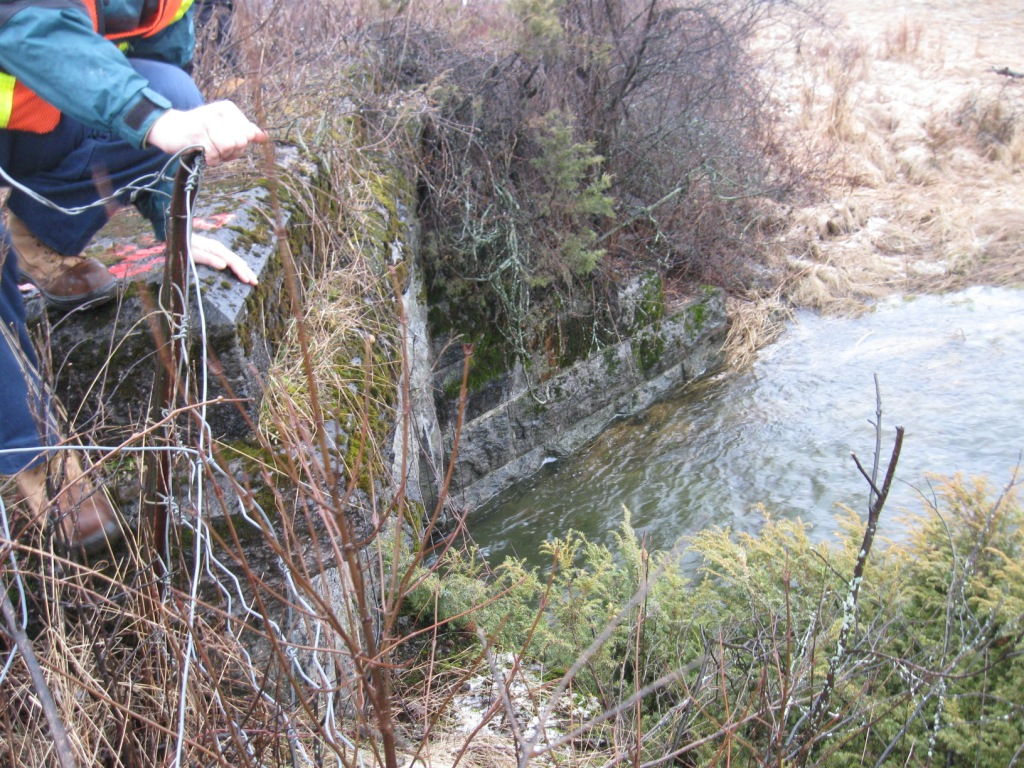

Stone arch culvert extension
The existing arch culvert is extended to accommodate addition of third track on north side . This extension consists of a structural plate arch supported on cast in place concrete footings founded on bedrock. Design Load Cooper E-90
